Power / Distribution Transformer (Oil / Dry)

INDUSREE make dry type lighting & distribution transformers are manufactured using VPI (Vacuum Pressure Impregnation) technology, resulting high quality & reliability product as well as the dielectric strength. Vacuum processed dry type transformers are safe & environment friendly equipments.

• Available Capacity

  10 KVA to 500 KVA, VPI / Resin cast type HT & LT /Single phase / Three phase, 50Hz / 60 Hz.

• Application

  Steel plant , Power distribution companies , High rise buildings ,OIL & GAS PLANT plant, Marine, Hospitals & all Hazardious & FIRE PRONE AREAS.

• Quality Features

  ⦿ High quality non-aging, cold rolled grain oriented high permeability silicon steel with thickness as low as 0.23 mm are used to Keep Losses as per BIS .
  ⦿ Precision cut to close tolerance using modern equipment to eliminate burrs resulting minimum loss.
  ⦿ Mitre cut, stepped core construction for optimum efficiency.
  ⦿ Winding of class A insulated according to customers requirements.
  ⦿ For insulation Nomex paper which is under 220 degree C limit.
  ⦿ Fibre glass materials are used for cylinders, spacers, ducts and dog bone.
  ⦿ Mechanically robust to absorb unforcing forces during short circuit condition.
  ⦿ Enclosure is made from sheet steel with lifting arrangement on sides.

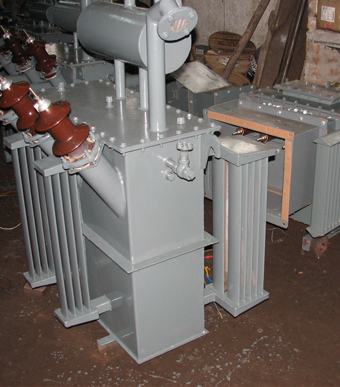

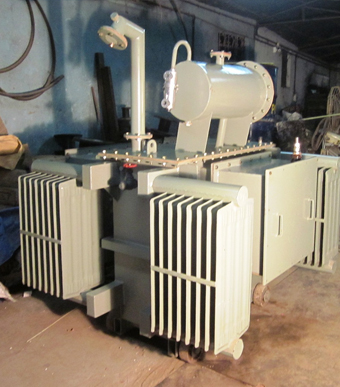

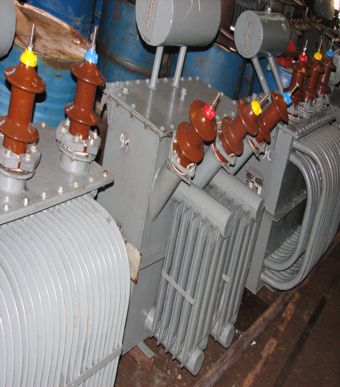

INDUSREE make oil cooled type distribution transformers 1ph. Or 3ph,are manufactured to effectively improve the quality & reliability of electrical distribution system. Oil cooled transformers (up to 11 KV) are tested as per IS 2026 /1180 for Indian standard and matching other international standards.

• Available Capacity

  25KVA to 500KVA HT & LT/ Single phase /Three phase,50Hz/60 Hz.

• Quality Features

  ⦿ High quality non –aging, cold rolled grain oriented high permeability silicon steel with thickness as low as 0.27mm are used.
  ⦿ Precision cut to close tolerance using modern equipment to eliminate burrs resulting minimum loss.
  ⦿ Mitre cut, stepped core construction for better efficiency.
  ⦿ Windings are class A.
  ⦿ For insulation high quality craft papers are used.
  ⦿ Compressed paper based material are used for cylinders, spacers , ducts.
  ⦿ Mechanically robust to withstand unforcing forces during short circuit condition.
  ⦿ Enclosure is made from sheet steel with a lifting arrangement on both sides.
